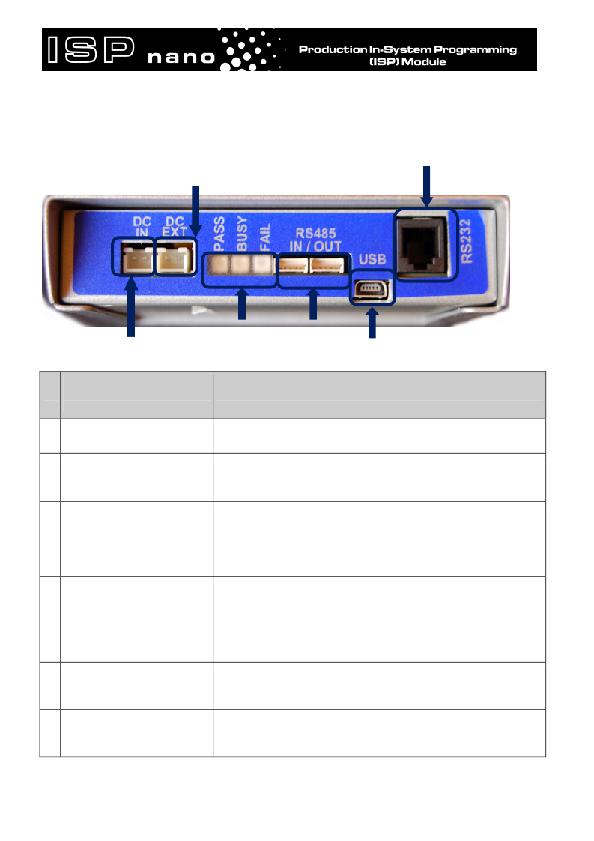

1.8 ISPnano Series I - Rear panel connections
The illustration below details the function of each of the connectors on the rear panel of the
programmer.
2
6
1
3
4
5
#
1
2
Connector Name
DC Power Input
EXTERNAL TARGET VCC
Description / comment
DC Power Input to power the programmer
Voltage range: 9.0 – 24.0 V DC (right-hand pin positive)
?
EXTERNAL TARGET VCC INPUT
INPUT
?
?
DC Power Input to power the programmer
Voltage range: 3.0 – 24.0 V DC (right-hand pin positive)
3
Programmer STATUS LEDs Programmer ‘Status’ LEDs
?
From Left to right:
?
?
?
PASS (GREEN)
BUSY (YELLOW)
FAIL (RED)
4
5
6
RS485 Ports
RS232 Port (1)
RS232 Port (2)
RS485 Ports (1) + (2) - Serial Communications Ports
These port can be used to control the programmer via an
?
RS485 link from a PC. They are connected in parallel internally
so it does not matter which is used as the RS485 INPUT or
OUTPUT.
The connector is a 5-pin 2.54mm Molex.
?
RS232 Port (1) - Serial Communications Port
This port can be used to control the programmer via an RS232
?
link from a PC or other Test Equipment.
The connector is a 3-pin 2.5mm Molex.
?
RS232 Port (2) - Serial Communications Port
or Remote Display Keypad
?
?
?
This port can be used to control the programmer via an RS232
link from a PC or other Test Equipment.
A ‘Remote Display / Keypad Module’ can also be connected
to this port allowing the programmer to be remote controlled.
The connector is a 4-pin RJ11 connector.
ISPnano Series Programmer - User Manual – V1.11 – 12 May 2011
th
15
